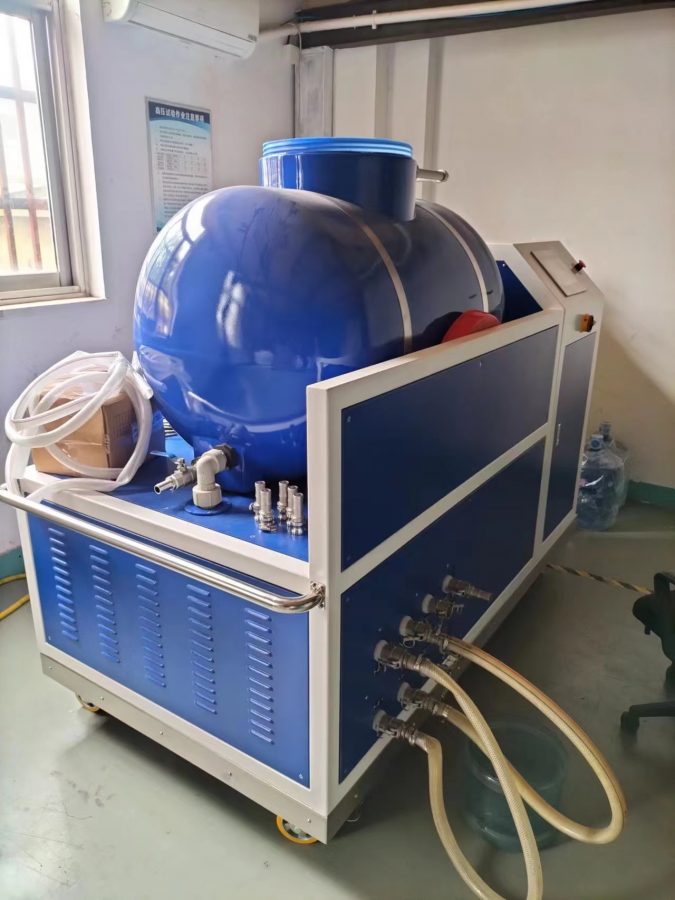

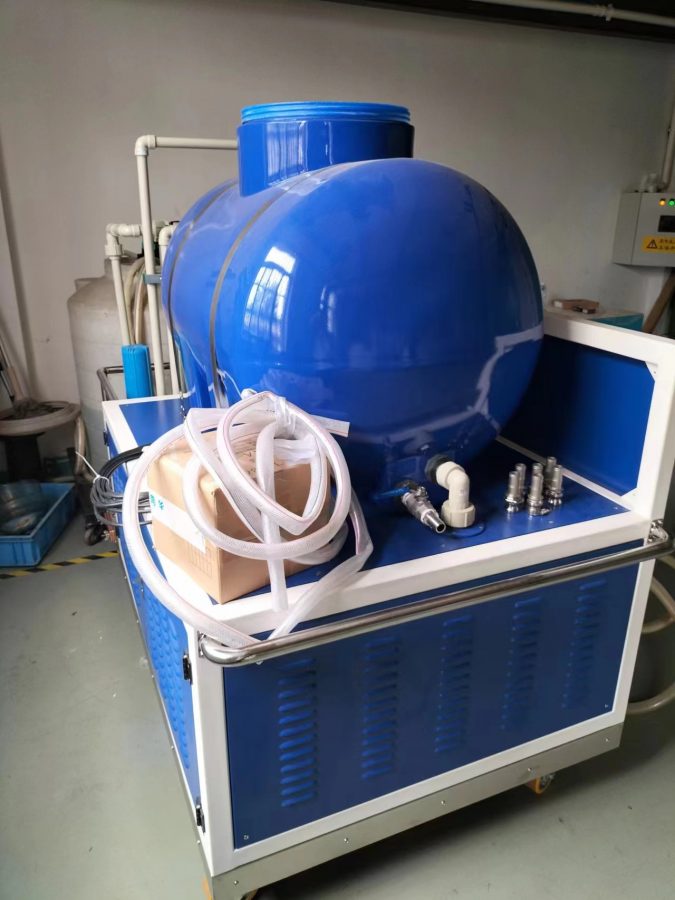

Water Processing Unit for HV Cable Testing

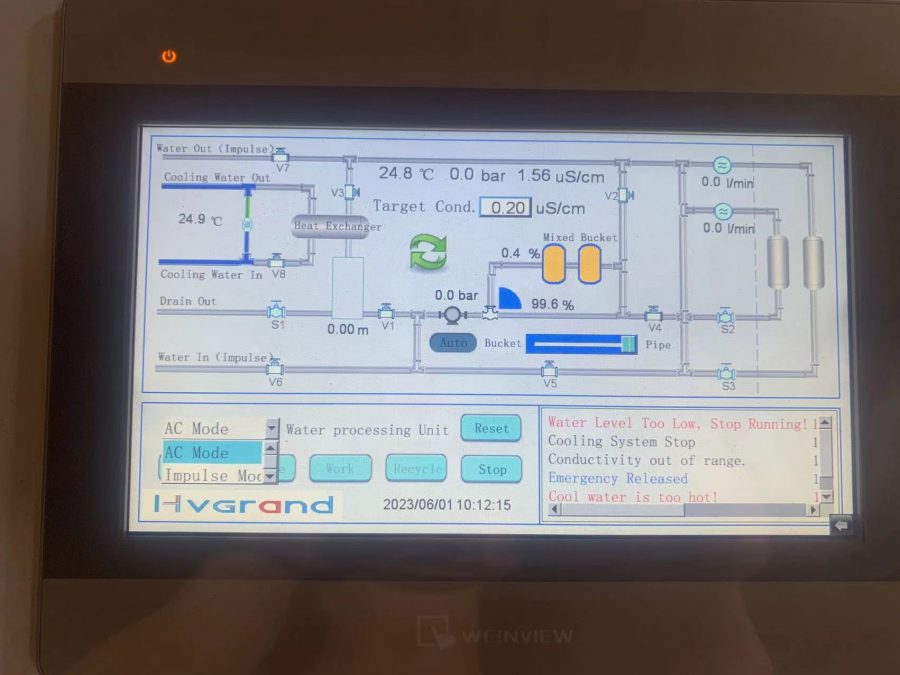

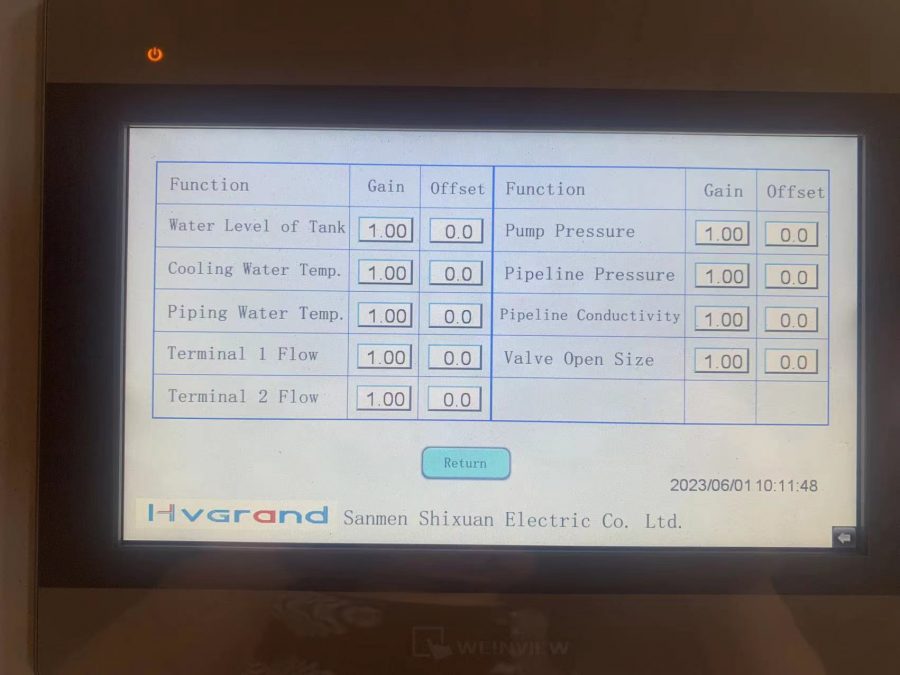

User friendly touch screen interface for intuitive and convenient operation;

Switching between test modes (such as AC and LI modes) is easy;

Safety features to monitor temperature, pressure, water flow and conductivity;

Warning messages, emergency stop button, safe circuit interlock, pressure valves for operating comfort

The water processing unit regulates the conductivity of the water and serves as cooling system. In routine AC test, the water processing unit and the water cable test termination form a close water circuit.

To ensure ample thermal stability, the unit has a tank holding up to 600L deionized water.
The water processing unit allows automatic filling of the water cable test termination with conductive water for lighting impulse test.

• Power supply：380V, 10A , 50/60Hz
• Maximum cooling capacity: 120kW
• Water volume: 600L
• Max temperature of normal flowing speed: 60℃
• Maximum pressure: 5MPa；
• Control range of conductivity: 1～2μs /cm
• Maximum ambient temperature: 40℃
• Minimum ambient temperature: 3℃
• Maximum cooling water temperature: 20℃
• Minimum cooling water flow speed: 19 L /min
• Connection water pipe: 5 inch
• Fast water connector: 1 inch
• Size: (L) 2000mm x (W) 1200mm x (H) 1600mm
• Weight: 210kg
