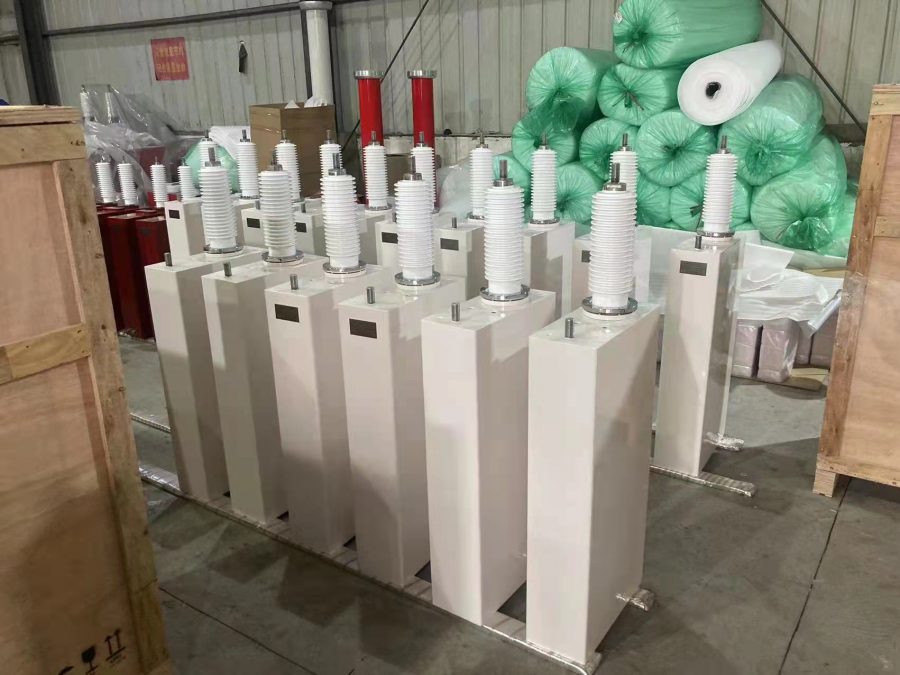

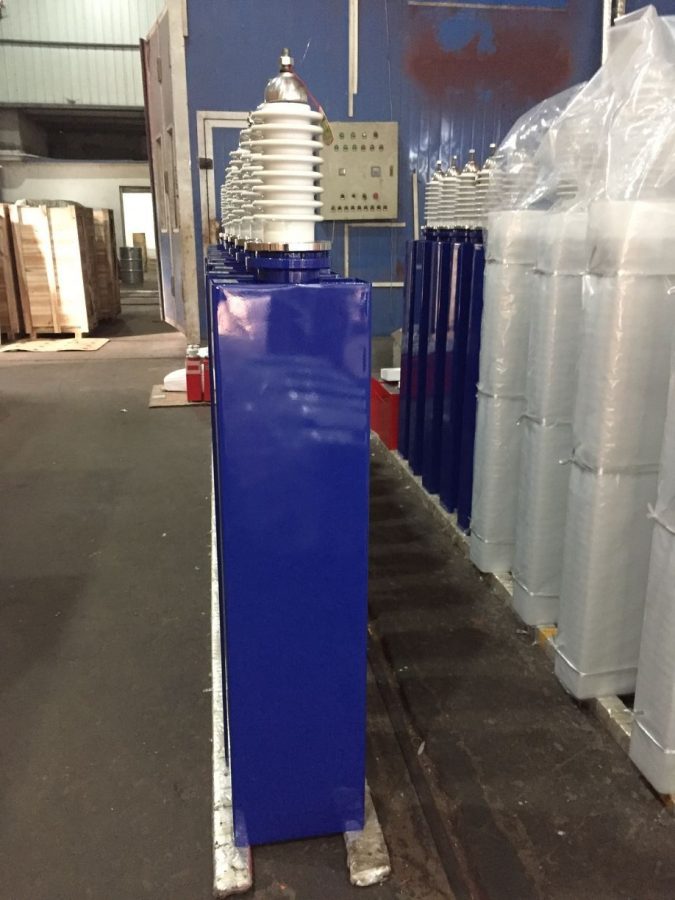

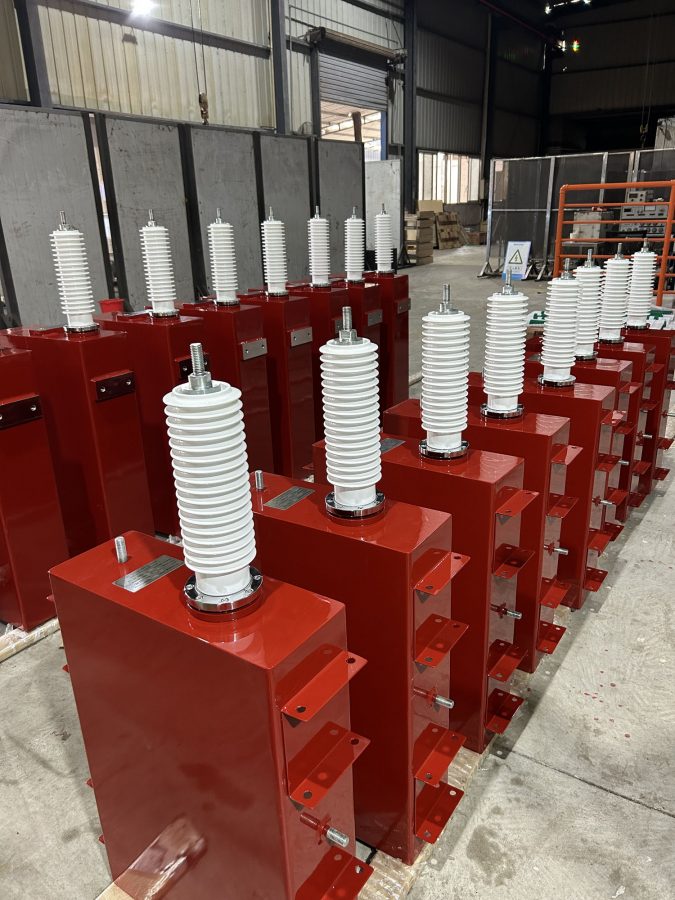

Impulse Capacitor HV capacitor

Impulse capacitors are widely used as the power energy for the high voltage and high current devices, such as impulse current generator, impulse voltage generator, long duration impulse current generator, repetition impulse generator, oscillation circuit test system, pulse power, etc.

Additional Product Information

Features & Benefits

Rated voltage: 5kV ~150kV;

Capacitance deviation:≤±5% at Un;

Dielectric loss: ≤0.2%;

If capacitance≤1μF, insulation resistance≥1×104MΩ;

If capacitance>1μF, time constant≥1×104s;

Inductance:less than 500nH



Applications

Impulse capacitors are widely used as the power energy for the high voltage and high current devices, such as impulse current generator, impulse voltage generator, long duration impulse current generator, repetition impulse generator, oscillation circuit test system, pulse power, etc.

Technical Parameters
Model No Rated Voltage

(kV)

Rated Capacitance

(μF)

Inductance (nH) Application
JMCF8-200 8 200 ≤100 oscillation circuit
JMWF10-0.6 10 0.6 ≤30 Mechanical device
JMCF18-40×2 18 40×2 ≤120 Impulse current generator
JMWF20-20 20 20 ≤80 Long duration impulse current generator
JMWF30-18 30 18 ≤200 oscillation circuit
JMWF35-2 35 2 ≤100 Cable fault detector
JMWF40-36 40 36 ≤300 Impulse voltage generator
JMCF50-32 50 32 ≤20 Pulse power device
JMWF75-1*2 75 1×2 ≤220 Impulse voltage generator
JMCF80-3 80 3 ≤120 impulse current generator
JMCF80-4 80 4 ≤30 Pulse power device
JMWF100-1 100 1 ≤200 Impulse voltage generator
JMWF100-2 100 2 ≤200 Impulse voltage generator
JMCF100-3 100 3 ≤200 Impulse voltage generator, impulse current generator
JMCF150-2 150 2 ≤250 Impulse voltage generator
JMCF100-6 100 6 ≤150 impulse current generator
