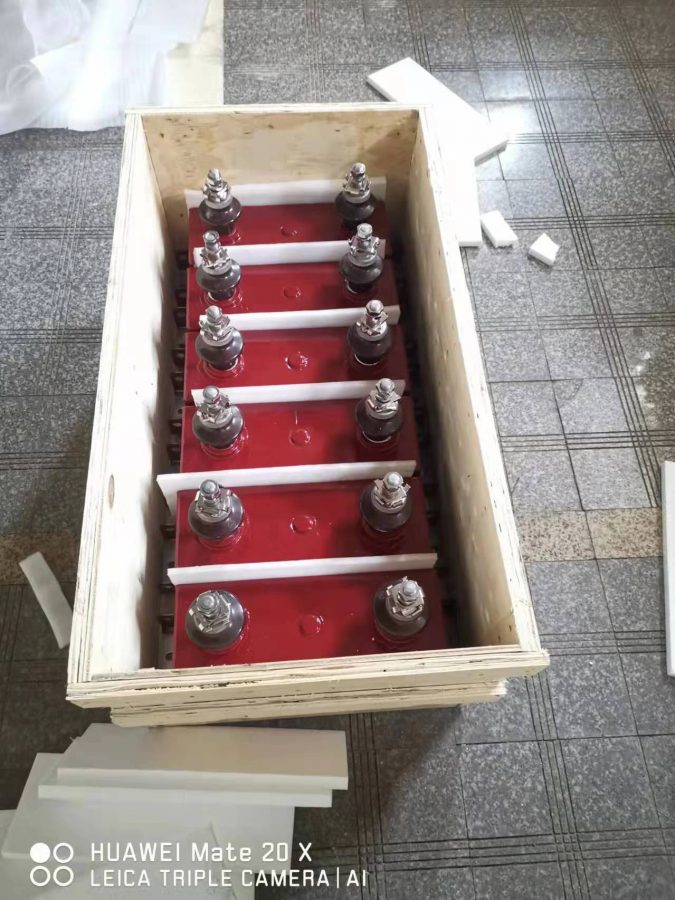

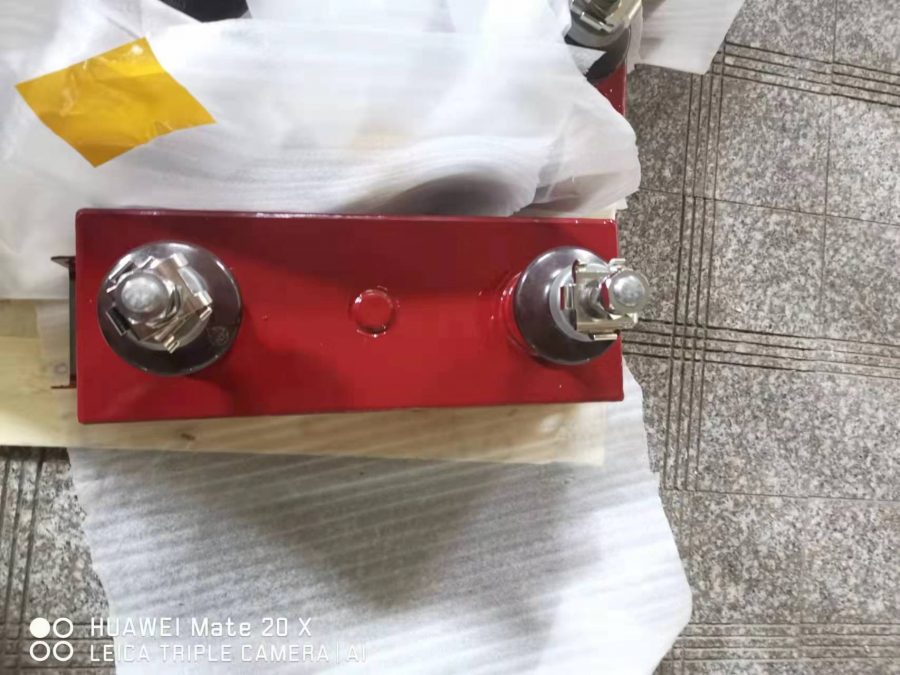

High Voltage Shunt Capacitor

High voltage shunt capacitors are used to improve the power factor in the AC power system (50Hz or 60Hz) and increase the quality of the electric network. They are in full line with GB/T 11024.1 and DL/T 840 standards.

Additional Product Information

Applications

High voltage shunt capacitors are used to improve the power factor in the AC power system (50Hz or 60Hz) and increase the quality of the electric network. They are in full line with GB/T 11024.1 and DL/T 840 standards.

Technical Parameters

Operation condition

  1. Altitude is below 1000m, if the altitude is above 1000m, please inform us in advance;
  2. Environmental temperature: -40℃~+45℃;
  3. There must be no violent vibration, no harmful gas, no conducting or explosive dust in the surrounding environment;
  4. The residual voltage between the terminals must be lower than 10% of rated voltage before the capacitor is put into operation.



Technical parameters

  1. Rated voltage:05;3.15;6.6/√3;6.3;10.5/√3;10.5;11/√3;11;11/2;12/2;12/√3;12;24/√3;24kV;
  2. Rated power: 100;150;200;300;334;400;417;500;
  3. Tolerance of capacitance: -5%~+5%; For 3 phase capacitors, the maximum capacitance value divided by the minimum capacitance value between any of the two terminals is less than 1.02;
  4. The withstand voltages between the shell and the terminal is shown as the below table.



Rated voltage

kV

Insulation level

kV

Power frequency withstand voltage (wet and dry condition) for 10 seconds

(kV)

Lightning impulse test (positive and negative) 1.2~5/50μs

(kV)

3.15 3 18/25 40
6.6/√3;6.3 6 23/30 60
10.5/√3;10.5;11/√3;11;11/2;12/2;12/√3;12   10 30/42 75
24;24/√3 20 50/65 125



Different models available or custom made



No. Model Rated voltage

(kV)

Rated power

(kVA)

Rated capacitance

(μF)

Weight

(kgs)

1 SBFM6.6/√3-50-1W 6.6/√3 50 11.0 18
2 SBFM6.6/√3-100-1W 6.6/√3 100 21.9 28
3 SBFM6.6/√3-200-1W 6.6/√3 200 43.8 45
4 SBAM6.6/√3-334-1W 6.6/√3 334 73.2 56
5 SBAM6.6/√3-400-1W 6.6/√3 400 87.7 64
6 SBAM6.6/√3-417-1W 6.6/√3 417 91.4 67
7 SBFM11-50-1W 11 50 1.32 18
8 SBFM11-100-1W 11 100 2.63 28
9 SBFM11-200-1W 11 200 5.26 45
10 SBAM11-334-1W 11 334 8.79 56
11 SBAM11-400-1W 11 400 10.5 64
12 SBAM11-417-1W 11 417 11.0 67
13 SBFM12-50-1W 12 50 1.11 18
14 SBFM12-100-1W 12 100 2.21 28
15 SBFM12-200-1W 12 200 4.42 45
16 SBAM12-334-1W 12 334 7.38 56
17 SBAM12-400-1W 12 400 8.84 64
18 SBAM12-417-1W 12 417 9.22 67
19 SBAM12-500-1W 12 500 11.1 77
20 SBFM6.6-100-3W 6.6 100 7.31 47
21 SBFM6.6-200-3W 6.6 200 14.6 56
22 SBFM6.6-300-3W 6.6 300 21.9 72
23 SBFM11-100-3W 11 100 2.63 47
24 SBFM11-200-3W 11 200 5.29 56
25 SBFM11-300-3W 11 300 7.89 72
26 SBFM12-100-3W 12 100 2.21 47
27 SBFM12-200-3W 12 200 4.42 56
28 SBAM24/2√3-417-1W 24/2√3 417 27.7 69
29 SBAM24/2√3-500-1W 24/2√3 500 33.2 79



Standards

They are in full line with GB/T 11024.1 and DL/T 840 standards.
