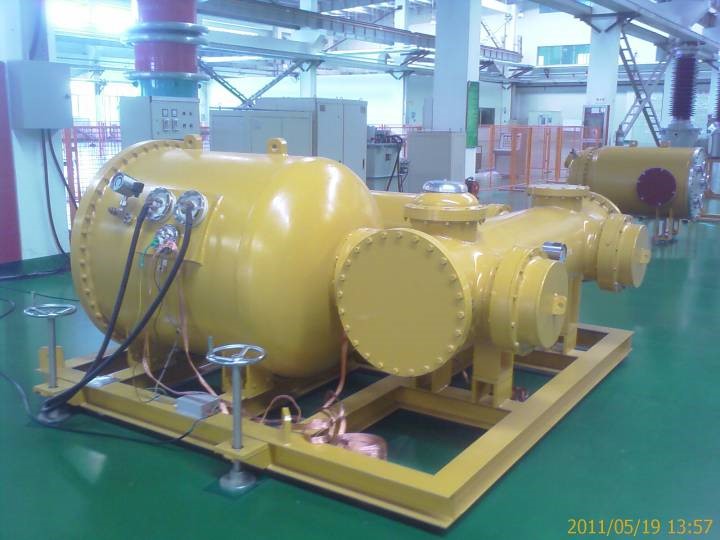

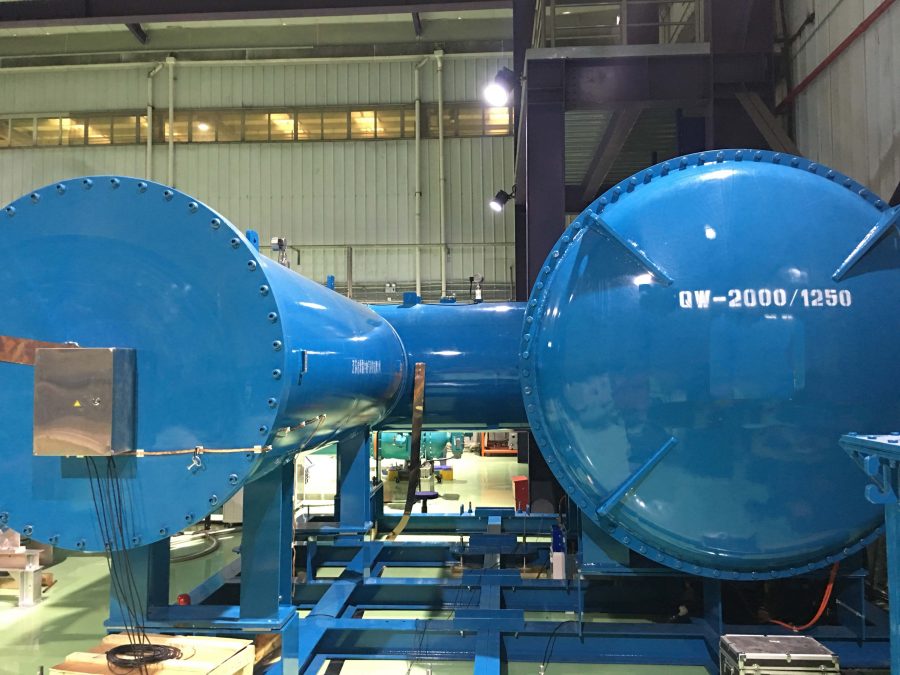

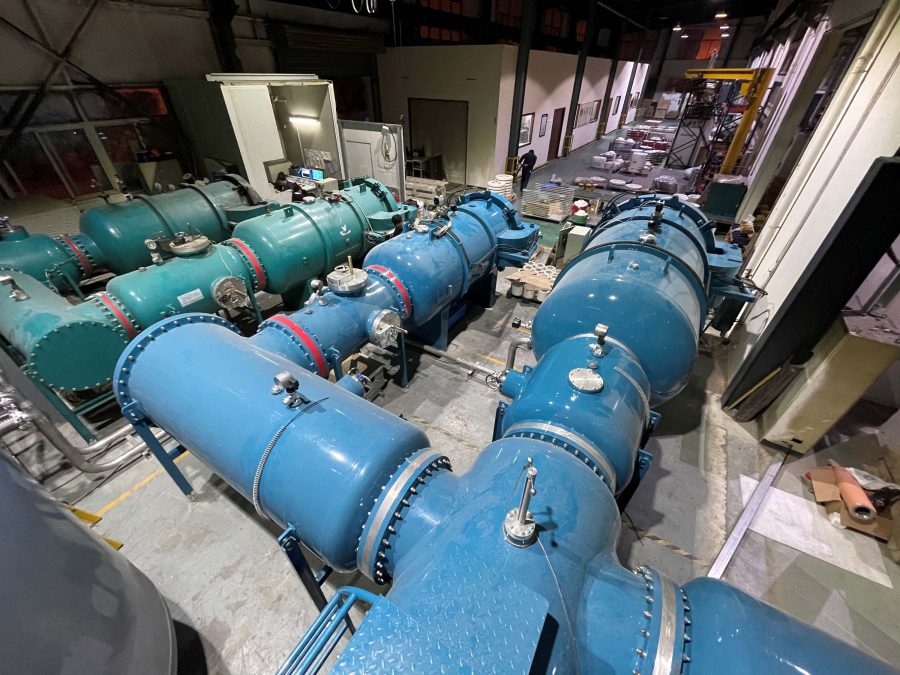

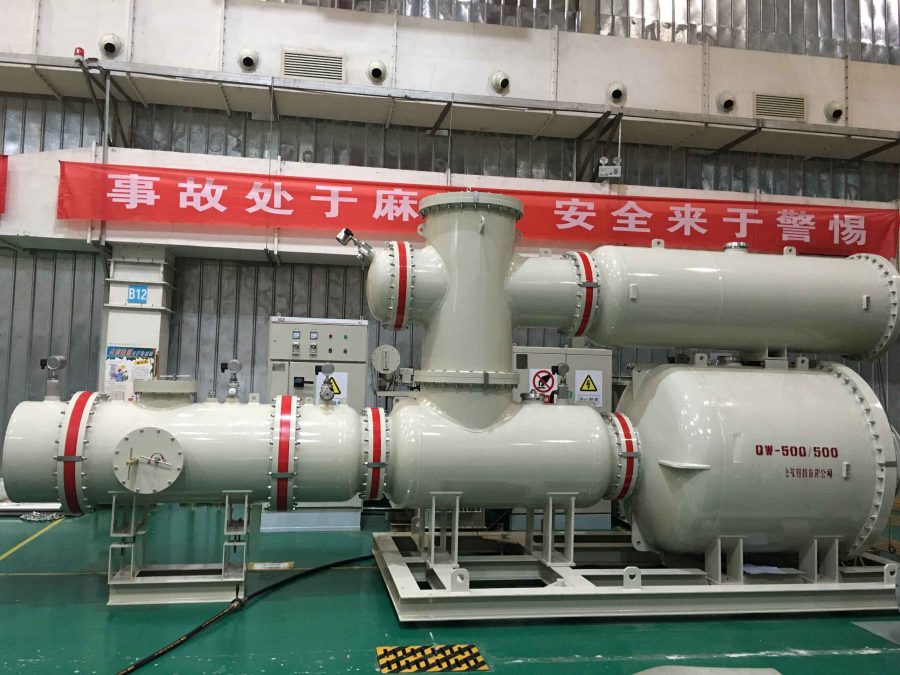

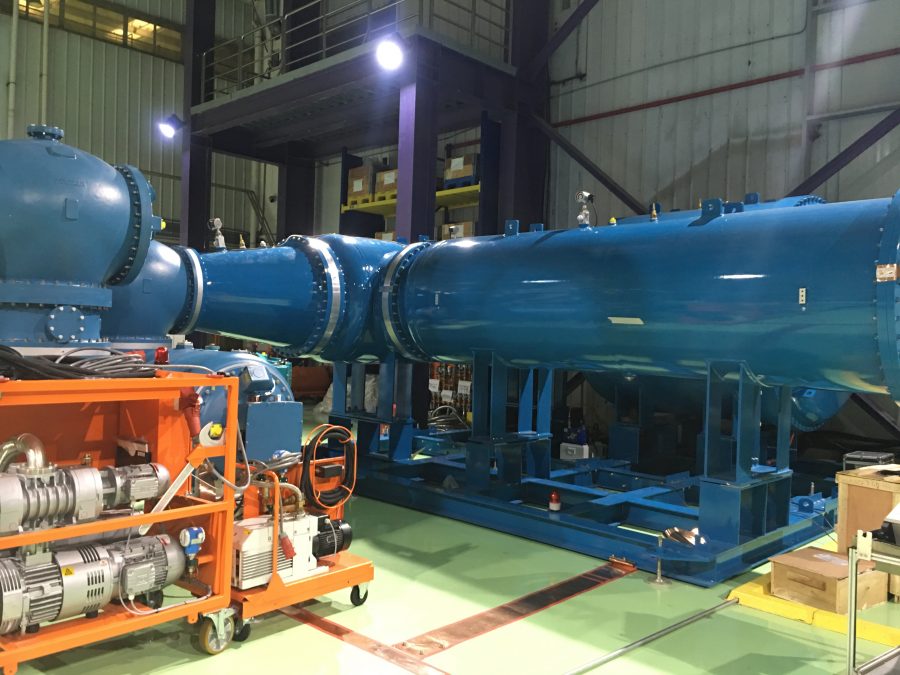

Gas Insulated AC Voltage Test System

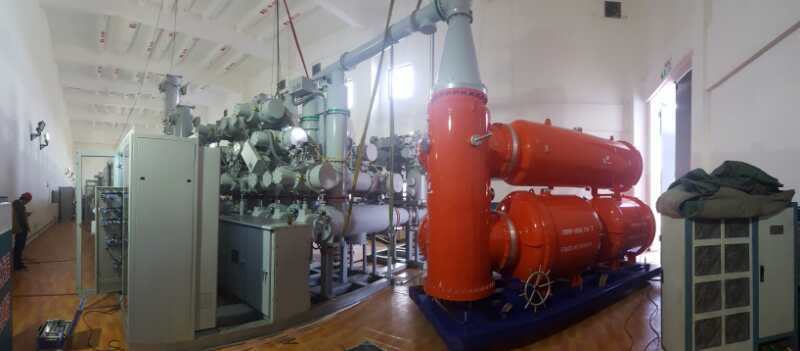

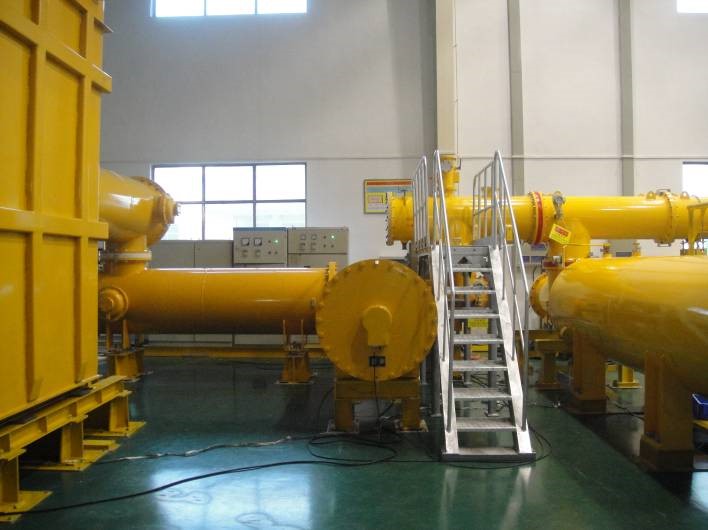

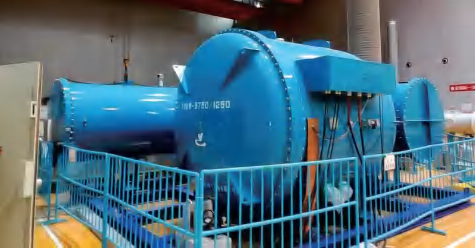

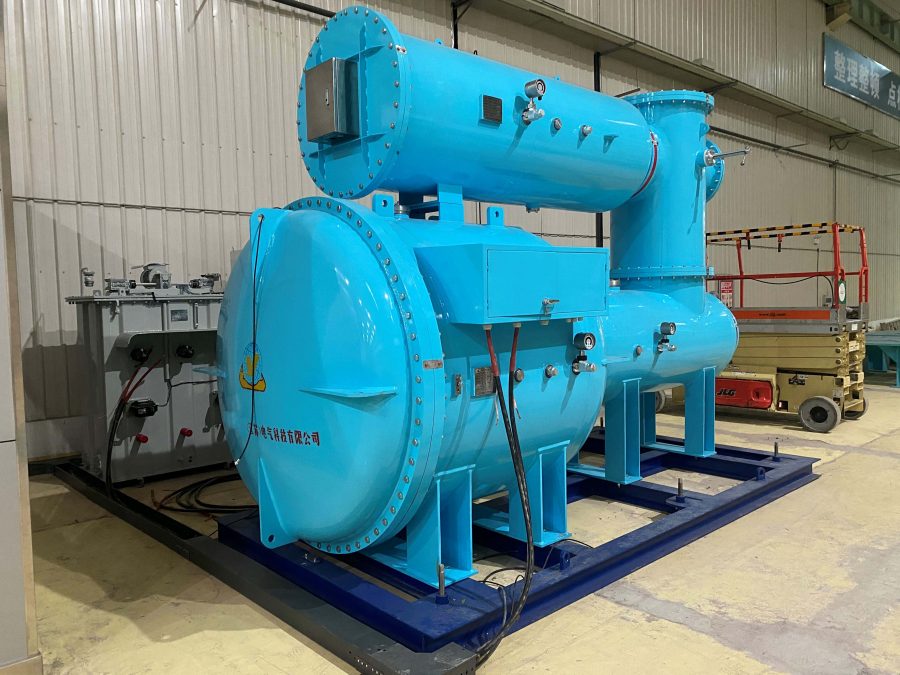

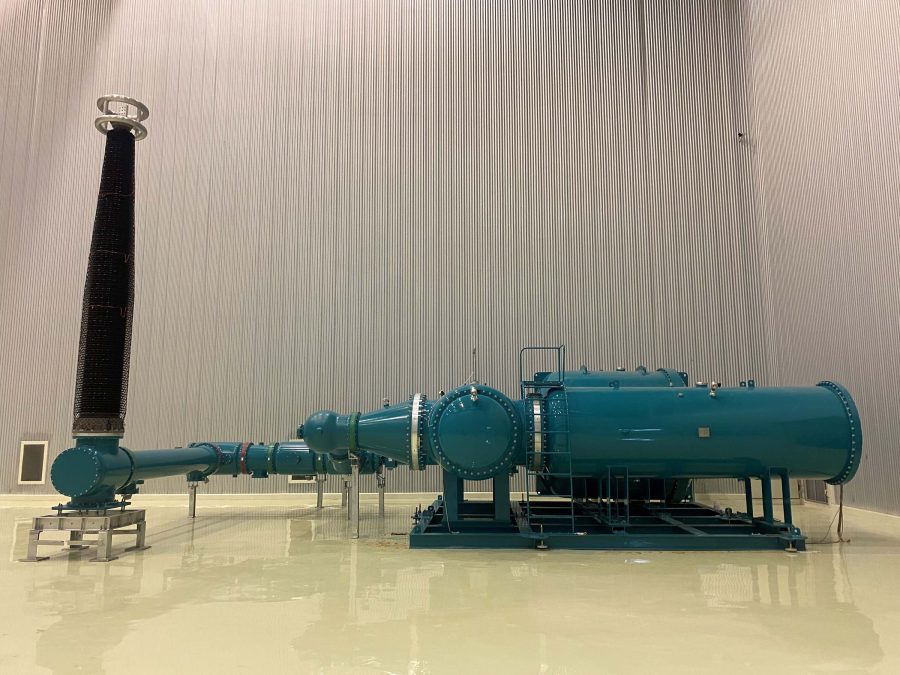

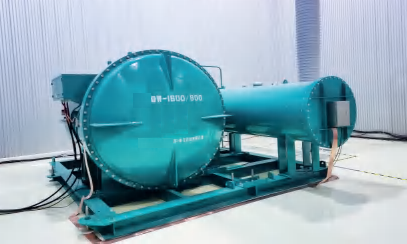

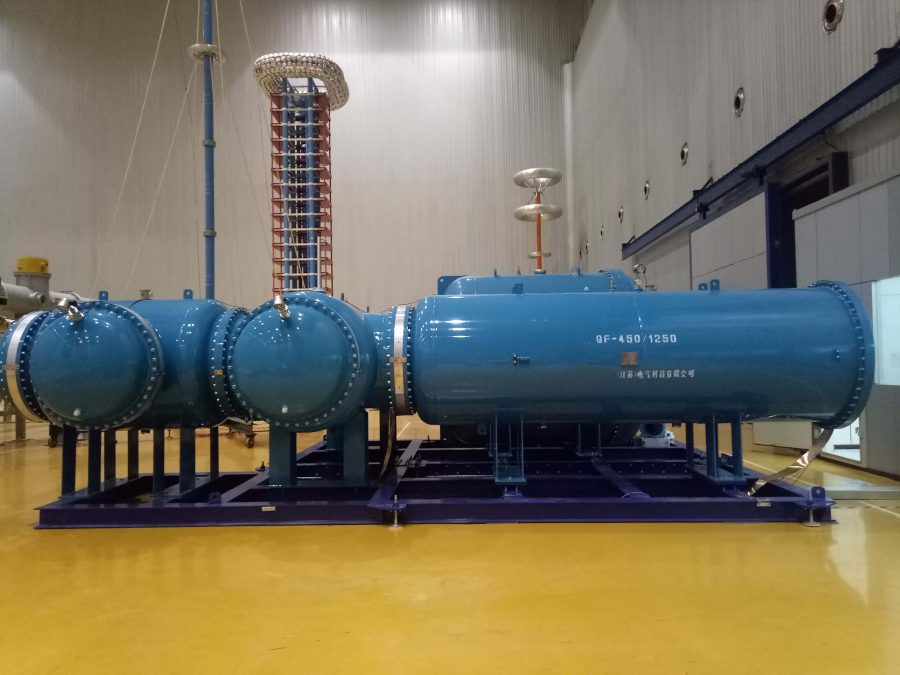

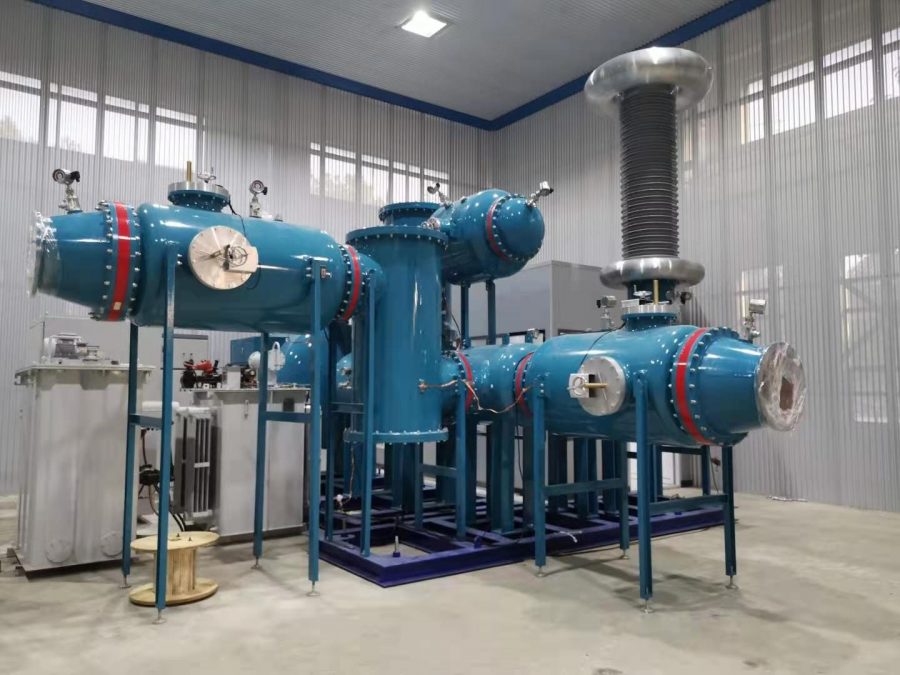

The Gas Insulated AC voltage test system with AC test transformer is used to do AC voltage test of GIS, GIL, gas instrument transformers. With partial discharge detector, it can also be used to do the PD measurement.

Additional Product Information

Features & Benefits

Long running time, can continuous running, more than 30 minutes;

Less PD value, PD≤1pC;

High output current, can reach 5A;

Maximum output voltage is 1500kV;

Greatly save the space, it is connected directly to the test object;

Reduce the investment of the factory as the system doesn’t require a shielded hall;

As per the demand of the customer, the shell can be made of Aluminum or Iron.



Applications

The Gas Insulated AC voltage test system with AC test transformer is used to do AC voltage test of GIS, GIL, gas instrument transformers. With partial discharge detector, it can also be used to do the PD measurement.

Technical Parameters
Model Rated Capacity

kVA

Rated Voltage

kV

Weight

Kgs

SXQW-150/300 150 300 2800
SXQW-300/300 300 300 3300
SXQW-600/300 600 300 5000
SXQW-600/400 600 400 4800
SXQW-800/400 800 400 5600
SXQW-300/600 300 600 8400
SXQW-1200/600 1200 600 13000
SXQW-400/800 400 800 13800
SXQW-1600/800 1600 800 16400

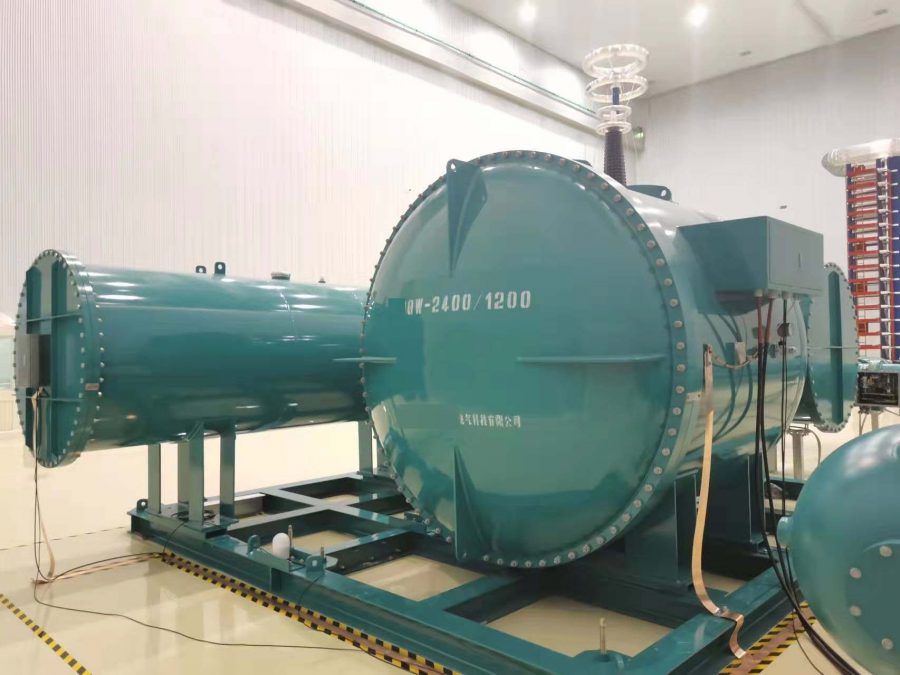

SXQW-2400/1200 2400 1200 32200
SXQW-2500/1250 2500 1250 32700
SXQW-3750/1250 3750 1250 36200
SXQW-5000/1250 5000 1250 40000
