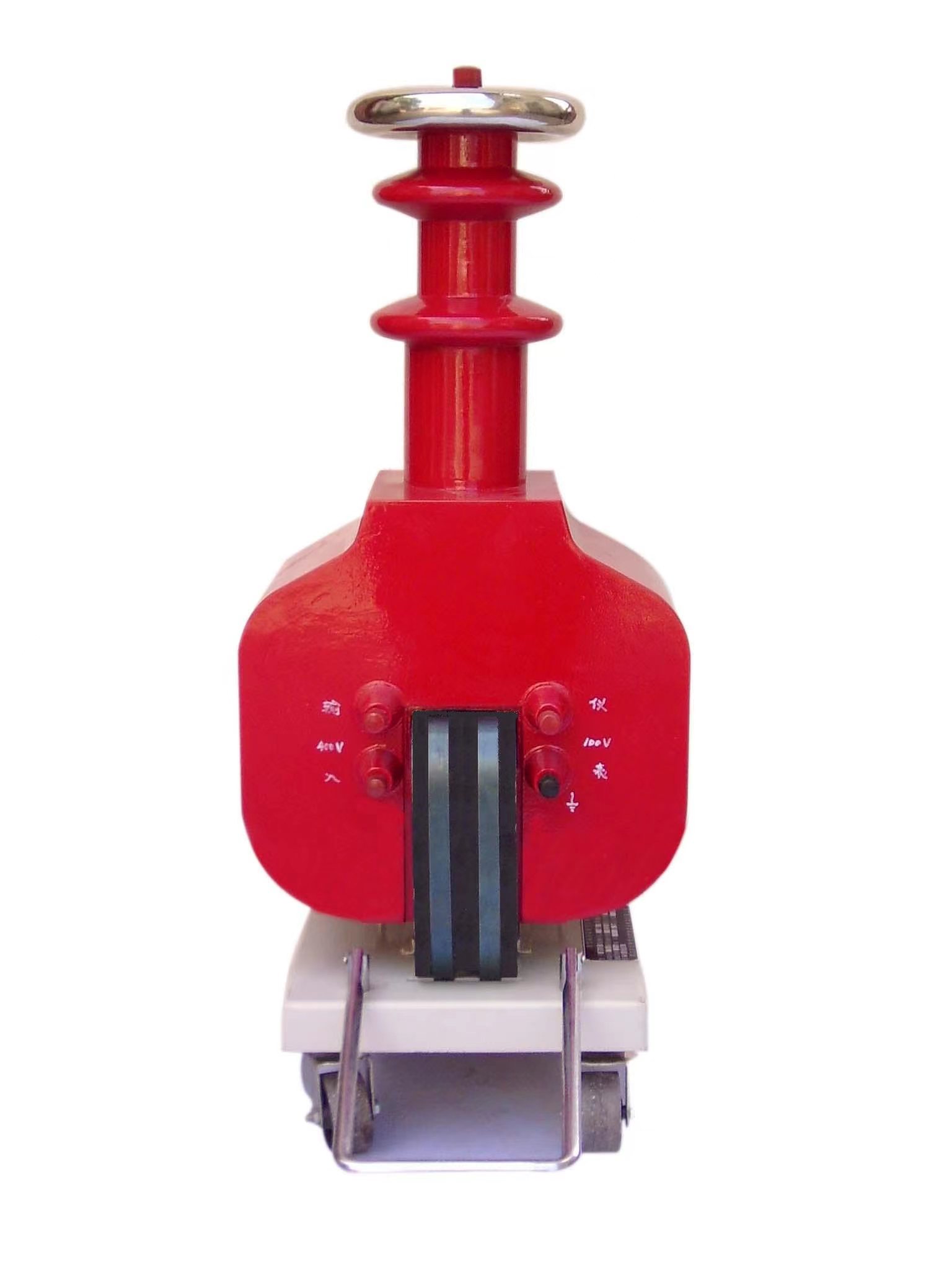

Dry Type AC and DC Test Transformer

This AC test transformer adopts advanced new technology of coil winding, epoxy vacuum pouring and CD-type iron core, which obviously reduce weight and volume, improve insulating strength and humidity resistance level.
The transformers have light weight, small volume, beautiful appearance, stable performance and convenient operation, which are especially suitable for onsite operation. The transformers are applicable for the power systems and all power users to detect on site the insulating performance test of all electrical equipment. The transformers can be used as the perfect high voltage power sources of all appliance's voltage system.

Additional Product Information

Features & Benefits

The transformers have light weight, small volume, beautiful appearance, stable performance and convenient operation, which are especially suitable for onsite operation. The transformers are applicable for the power systems and all power users to detect on site the insulating performance test of all electrical equipment. The transformers can be used as the perfect high voltage power sources of all appliance’s voltage system.

Applications

This AC test transformer adopts advanced new technology of coil winding, epoxy vacuum pouring and CD-type iron core, which obviously reduce weight and volume, improve insulating strength and humidity resistance level.

Technical Parameters
  1. Impedance voltage: 4.5%-8%
  2. Surface temperature rise: sine wave
  3. Idle load loss consumption: 0.2%-0.35%
  4. Allowable continuous operation time: 0.5 hours
  5. Interrupted operation time: continuous
Model Capacity

(kVA)

Input voltage

(V)

Output voltage

(kV)

Output current

(mA)

Output DC high voltage

(kV)

SXGB-1.5/50 1.5









200

(400)







50

30



70

SXGB-3/50 3 60
SXGB-6/50 6 120
SXGB-10/50 10 200
SXGB-20/50 20 400
SXGB-30/50 30 600
SXGB-5/100 5



100

50



140

SXGB-10/100 10 100
SXGB-20/100 20 200
SXGB-30/100 30 300
SXGB-50/100 50 500
