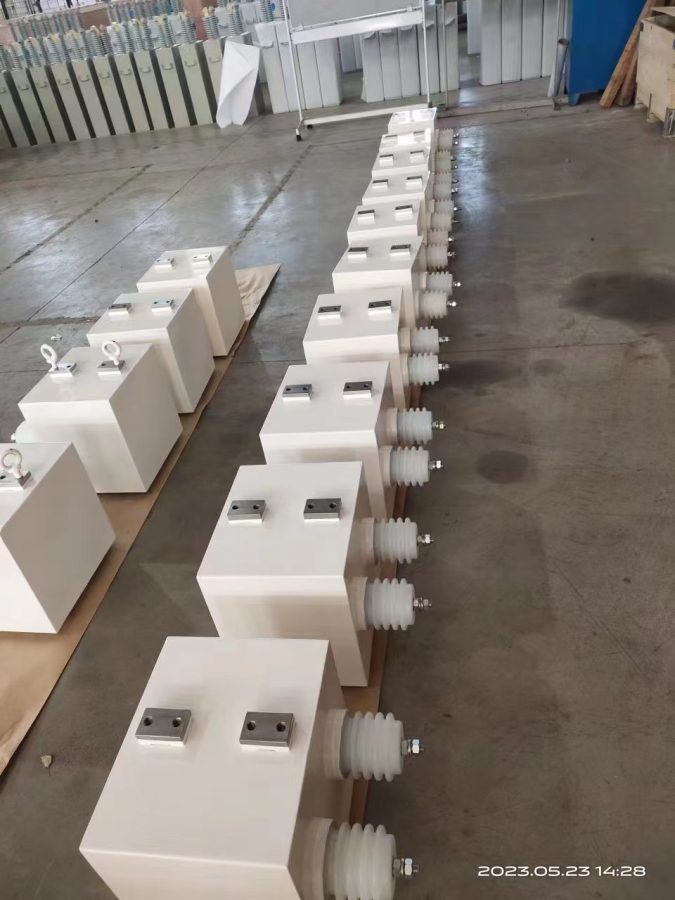

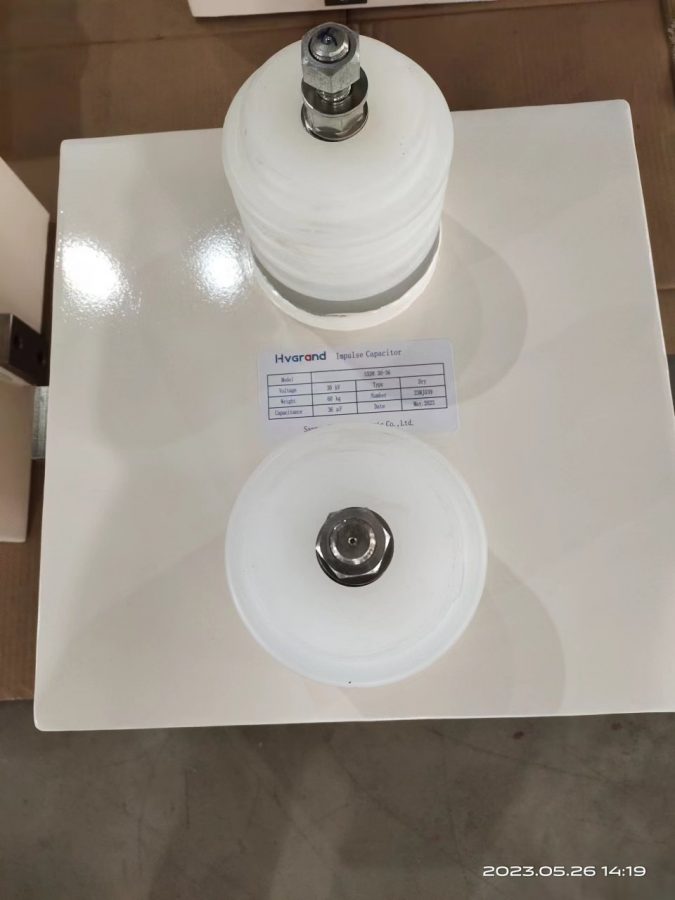

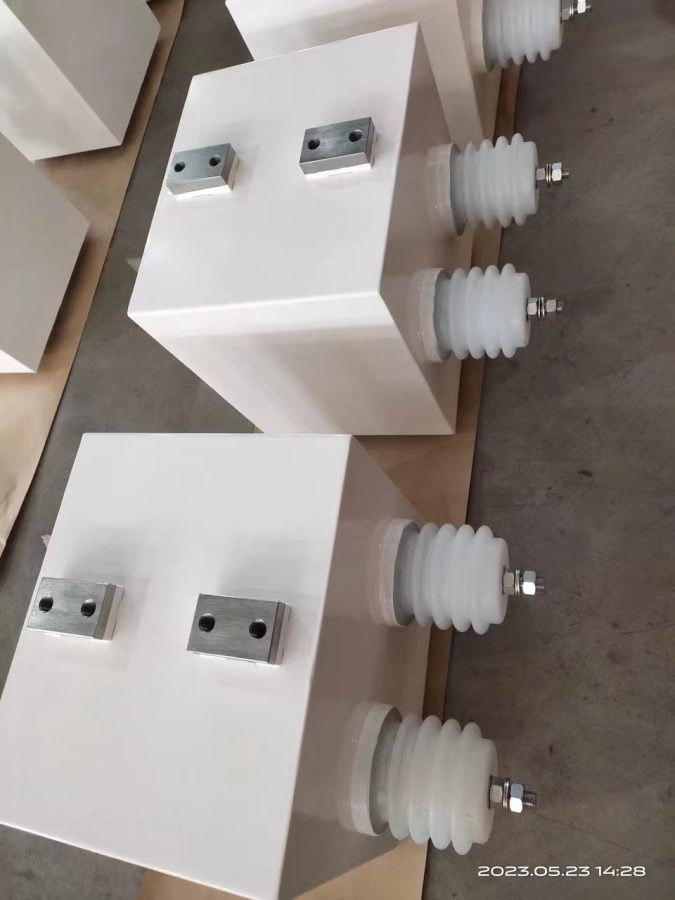

Dry Impulse Capacitor

The impulse capacitors are mainly used in the pulse power, electromagnetic weapons, oscillation circuit, damped oscillating current and other impulse devices. The impulse capacitors are designed for indoor usage. They are dry type and the filler is Polyurethane.

Additional Product Information

Features & Benefits



High electric capability, high energy storage density;

High reliability, be able to withstand certain current and fault;

Dampproof, fireproofing, anti-explosion

Applications

The impulse capacitors are mainly used in the pulse power, electromagnetic weapons, oscillation circuit, damped oscillating current and other impulse devices. The impulse capacitors are designed for indoor usage. They are dry type and the filler is Polyurethane.

Technical Parameters
Model Rated voltage

(DC, kV)

Rated capacitance

(μF)

Tolerance of capacitance
SXDM2-10000 2 10000 ±5%
SXDM7.12-1975 7.12 1975 ±5%
SXDM7.12-1975 7.12 1975 ±5%
SXDM7.12-1975 7.2 1930 ±5%
SXDM2-205 10 200 ±5%
SXDM10-232 10 232 ±5%
SXDM710-1000 10 1000 ±5%
SXDM714-638 14 638 ±5%
SXDM40-36 40 36 ±5%
We can also do custom made.
Standards

Chinese standard: JB/T8168-2023
